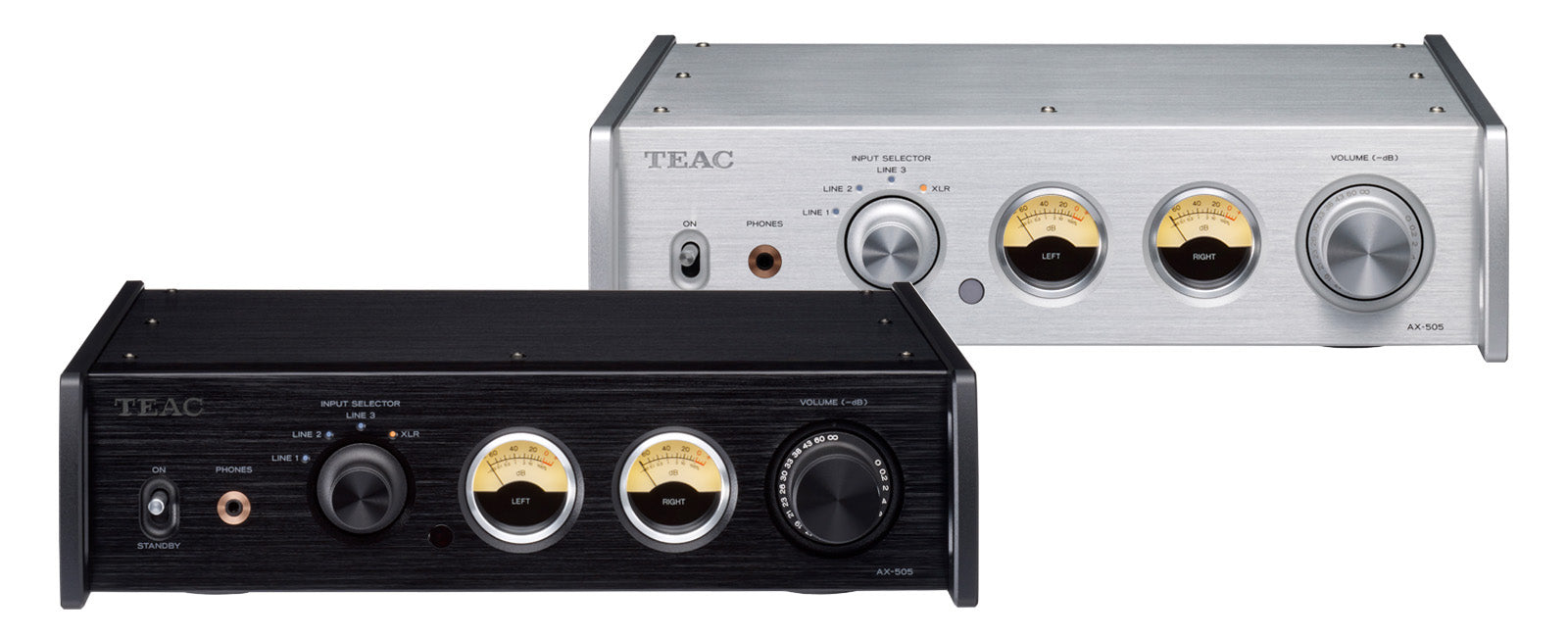

The AX-505 is a compact integrated amplifier with a Hypex Ncore power module tuned by TEAC, producing 130 watts per channel into 4 ohms from an A4-size, passively cooled full-metal chassis. A balanced XLR input pair joins three RCA line inputs, volume is set by independent ladder-resistor controls, and MUSES8920 op-amps handle the analog stage. The coupling-capacitor-less CCLC headphone circuit feeds a 3.5mm 4-pole jack with ground-separate connection, and dual level meters with a four-step dimmer track the signal.
