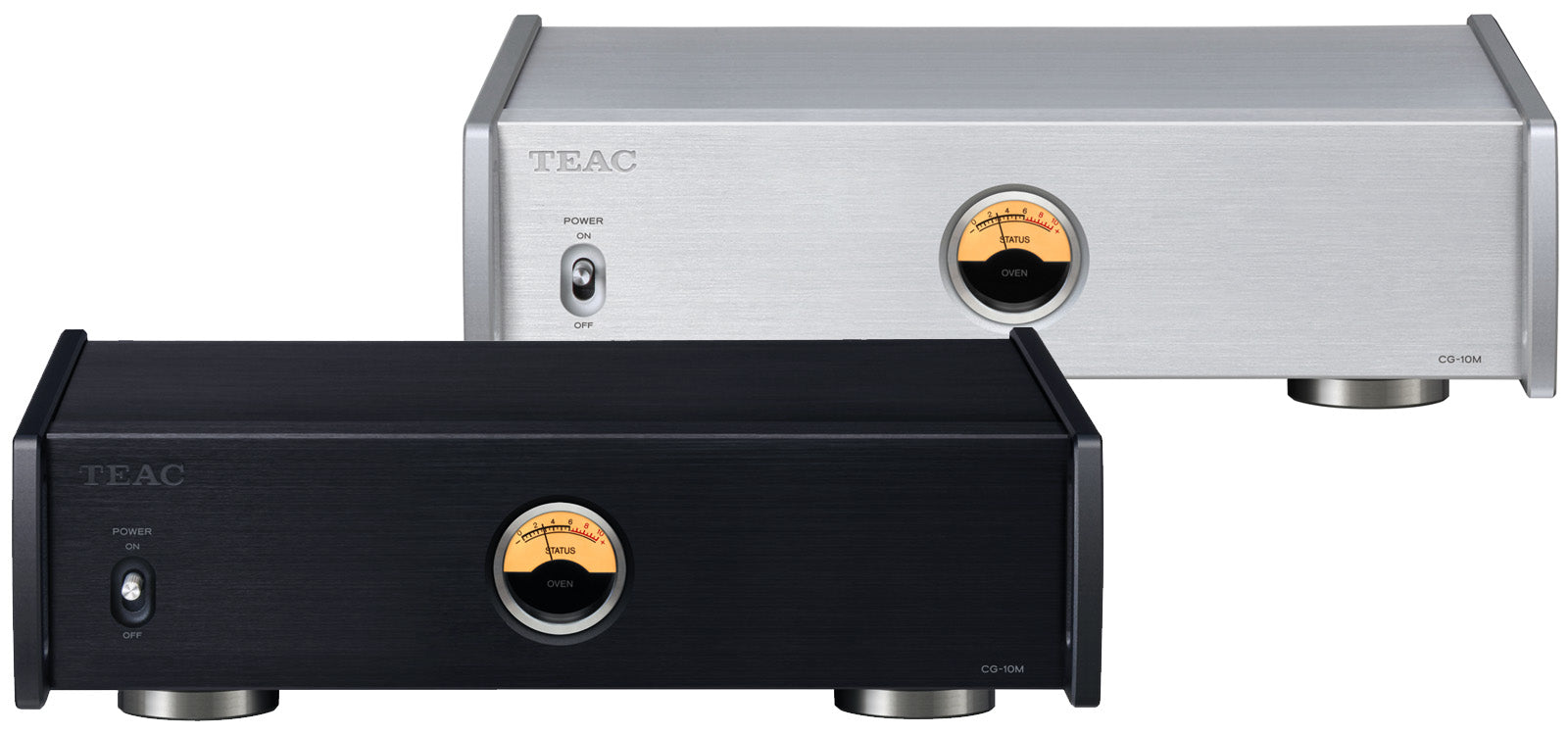

The CG-10M-X is a 10MHz master clock generator built around a TEAC Reference OCXO — an oven-controlled crystal oscillator held in a thermostatic chamber for stable oscillation, its status readable on an analog oven meter on the front panel. Four BNC outputs deliver a 0.5Vrms sine wave to DACs, network players, and CD components with external clock inputs. The X edition refines the output buffer and power supply circuits and adds a semi-floating top panel with Stressless feet, in silver or black to match the Reference 500 series.
Specifications
Oscillator
OCXO (oven-controlled crystal oscillator)
Outputs
4x BNC, 10MHz, 0.5Vrms sine, 50 ohms
Frequency precision
Within ±0.1ppm when shipped; ±3ppb temperature characteristics
